Home Concepts Cabinet Construction

The Home Concepts brand by Wellborn Cabinet, Inc. was created with you and your builder in mind, whether you are a young family starting out in an affordable first home or breaking ground on a weekend getaway location.

Standard
Construction

Wall & Base Cabinet

P60 HO1
Home Concepts Standard Construction Top

1/2" Wood grain laminated furniture board top
Home Concepts Standard Construction Hanging Rail

11/16" x 3 1/2" Wood grain laminated fiber board hanging rails
Home Concepts Standard Construction Hinges

Standard concealed hinges have two-way adjustability.

Butt door hinges have six-way adjustability.
Home Concepts Standard Construction Back

1/8" Wood grain laminated MDF back
Home Concepts Standard Construction Shelves

3/4" Wood grain printed furniture board adjustable shelves with edge banding; dual locking WellLock Shelf Clips
Home Concepts Standard Construction End Panels

1/2" Wood grain laminated furniture board end panels finished on top and bottom edges complement door*
Home Concepts Standard Construction Face Frame

3/4" x 1 3/4" Kiln-dried solid wood face frames; mortised and tenoned, glued and stapled
Home Concept Standard Construction I-Beam

1/2" x 3" I-Beam furniture board support dadoed into front, back and side
Home Concepts Standard Construction Hanging Rail

11/16" x 3 1/2" Wood grain laminated fiber board hanging rails
Home Concepts Standard Construction Drawer

1/8" Wood grain printed hardboard drawer bottom
Home Concepts Standard Construction Shelves

3/4" Wood grain printed furniture board adjustable shelves with edge banding; dual locking WellLock captive shelf clips
Home Concepts Standard Construction Back

1/8" Wood grain laminated MDF back
Home Concepts Standard Construction End Panel

End panel brace supports cabinet floor in back
Home Concepts Standard Construction Bottom

1/2" Wood grain laminated furniture board bottom (solid wood brace on 36" wide and larger cabinets)
Home Concepts Standard Construction Toe Kick

1/2" Unfinished furniture board full height "captive" toe kick. Requires a base toe space cover
Home Concepts Standard Construction Face Frame

3/4" x 1 3/4" Kiln-dried solid wood frames; mortised and tenoned, glued and stapled
Home Concepts Standard Construction End Panel

1/2" Wood grain laminated furniture board end panels complement door*
P62 Home Concepts Logo
Home Concepts Comparison Chart

All Plywood Cabinet Construction

(Optional Upgrade)

Wall & Base Cabinet

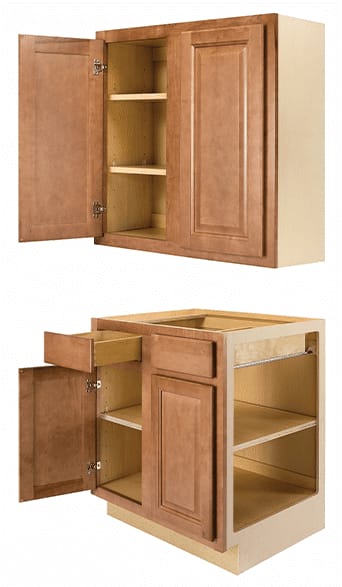

P61 HO1
Home Concepts All Plywood Construction Top

1/2" Wood grain laminated plywood top
Home Concepts All Plywood Construction Hanging Rail

3/4" x 3 1/2" Laminated solid hardwood or plywood hanging rails
Home Concepts All Plywood Construction Hinges

Standard concealed hinges have two-way adjustablility.

Butt door hinges have six-way adjustability.
Home Concepts All Plywood Construction Back

3/16" Wood grain laminated plywood back
Home Concepts All Plywood Construction Shelves

3/4" Laminated plywood adjustable shelves with edge banding; WellLock Shelf Clips
Home Concepts All Plywood Construction End Panel

1/2" Unfinished plywood end panels with laminate interior (MFE option available)
Home Concepts All Plywood Construction Bottom

1/2" Wood grain laminated plywood bottom
Home Concepts All Plywood Construction

1/2" x 3" I-Beam plywood support dadoed into front, back and side
Home Concepts All Plywood Construction Hanging Rails

3/4" x 3 1/2" Wood grain laminated solid hardwood or plywood hanging rail
Home Concepts All Plywood Construction Drawer

5/8" Plywood dovetail drawer in a natural finish with laminated plywood drawer bottom, and undermount soft close drawer slides with a 75 lb. weight capacity. Exposed dovetail joints are unfinished.
Home Concepts All Plywood Construction Shelves

3/4" Laminated plywood adjustable shelves with edge banding; dual locking WellLock Shelf Clips
Home Concepts All Plywood Construction Back

3/16" Wood grain laminated plywood back
Home Concepts All Plywood Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Home Concepts All Plywood Construction Bottom

1/2" Wood grain laminated plywood bottom (solid wood brace on 36" wide and larger cabinets)
Home Concepts All Plywood Construction Toe Kick

4 1/2"H x 3 3/8"D Toe kick cut out, 1/2" unfinished plywood toe kick extends to cabinet floor for captive construction
Home Concepts All Plywood Construction Bottom

1/2" Wood grain laminated plywood bottom (solid wood brace on 36" wide and larger cabinets)
Home Concepts All Plywood Construction End Panel

1/2" Unfinished plywood end panels (MFE option available)

Cabinet Drawer Construction

Standard
Furniture Board Drawer

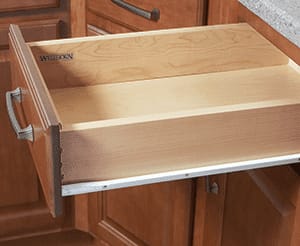

P64 HO1
3/4" Wood grain/white laminated furniture board drawer with epoxy coated, self-closing, side-mount drawer slides

Optional Upgrade
Plywood Drawer

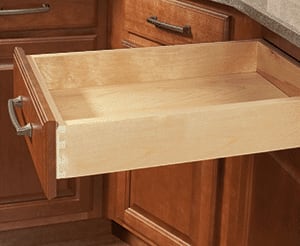

P65 HO1
5/8" Plywood dovetail drawer box in natural finish with laminated plywood drawer bottom and undermount soft close drawer slides. Dovetail joints are unfinished.

All Plywood Construction
Optional Upgrade Plywood Drawer

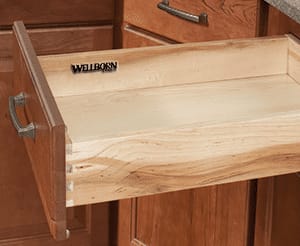

P66 HO1
5/8" Solid hardwood drawer box in natural finish with classic dovetail construction and undermount full extension soft close drawer slides

Wellborn Cabinet’s line of Home Concept cabinetry provides a good quality product at an affordable price.

  • Positioned to Serve Entry Level Remodeling, New Home Construction and Multi-Project Markets
  • Most Wood Doors Have a Veneered Center Panel
  • Ample door Styles, Species and Finish Combinations
  • Good Selection of Stains and Paint Options
  • Overlay Door Styles Offer Traditional and Transitional Styling
  • Good Selection of Cabinet Sizes and Accessories
  • Furniture Board Cabinet Standard and Plywood Options Available
  • Furniture Board Drawer Standard with Plywood Option Available
  • 1 Year Limited Warranty

Explore all door styles and available finish options using our Home Concepts Door Explorer! Contact your local Wellborn Cabinet dealer to find out more.

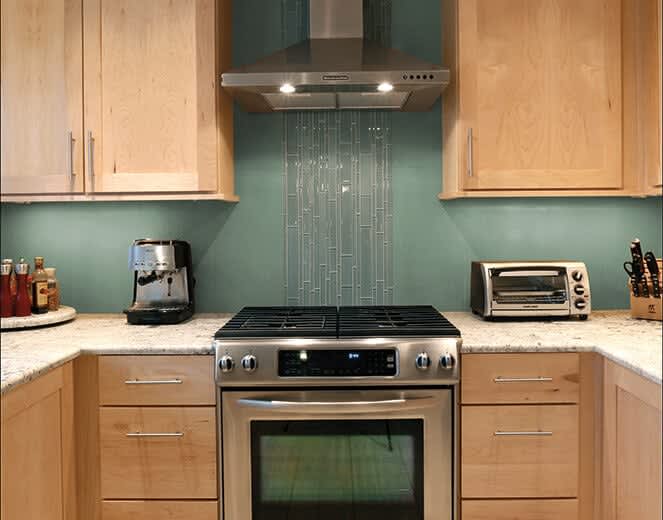

P67 Home Concepts Content Image
